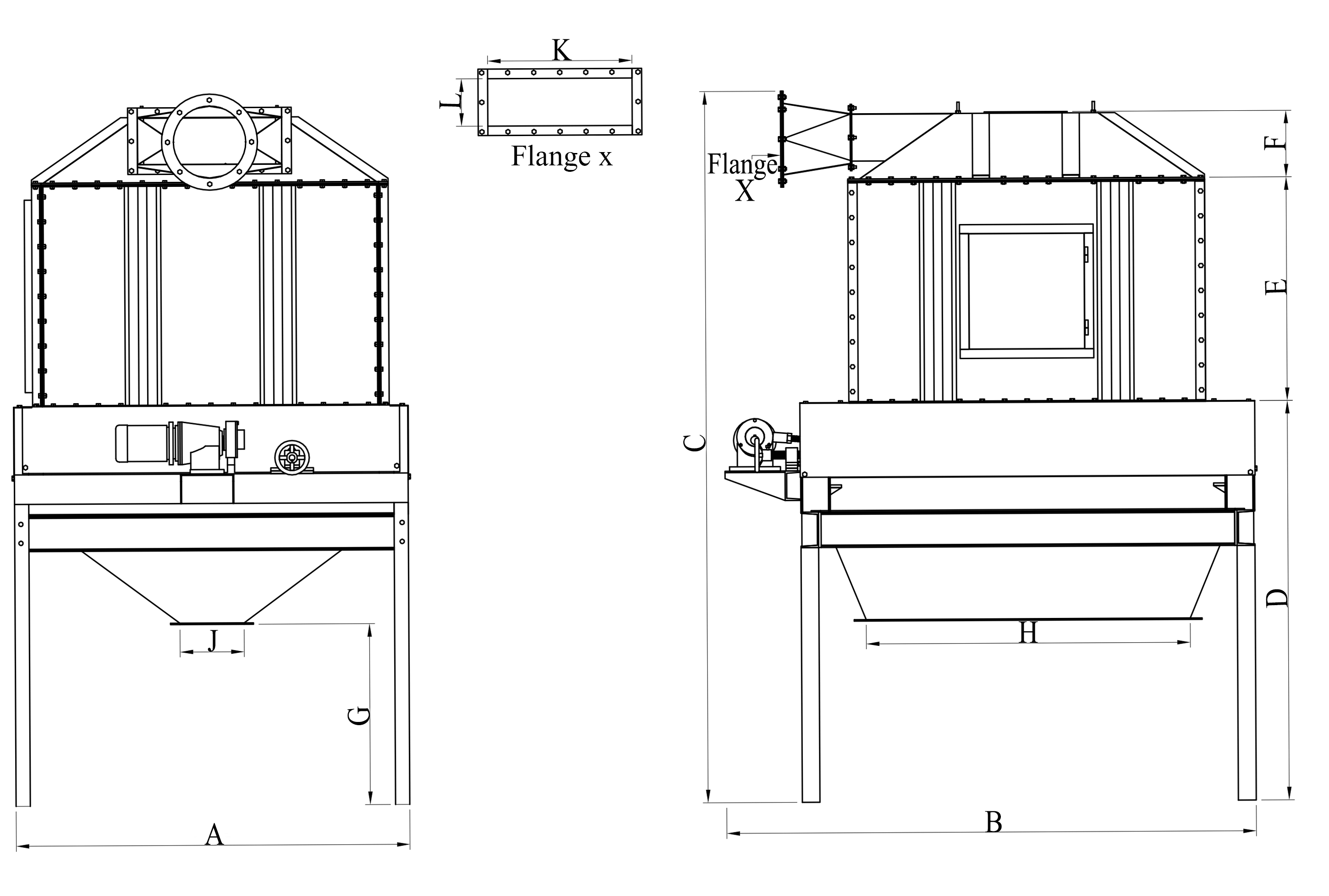

COOLER

Hot pellets coming out from Pellet Mill are required to be cooled near ambient temperature to remove excess moisture and heat to improve the shelf life.
Counter flow Coolers are fast replacing the old cross-flow or horizontal coolers as these are compact, maintenance free & highly efficient.
Atmospheric air is sucked through the product layer by I. D. Fan which has butterfly valve to control the optimum volume of air required for cooling.
Air can also be controlled by using a variable frequency A.C. Drive by altering the RPM of Blower. The exhaust air is hot & moist and carries the dust particles with it. Dust is removed from exhaust air by installation of a Cyclone. It works on the principle of centrifugal forces. This has an Air Lock below it.

Heavy Duty

This Elivator Machine is a heavy duty single leg machine
with Capacity of 8 Mt/Hr. (Model JST200)

High Performance

This is a high performance machine with features of Box Fabrication
Top and Bottom of elevator fabricated with 4mm, Boxes.

Quality Assaurations

We Manufectures this machine under the highest quality standards
of the industry.
